ROTARY DIE-CUTTING PARTS

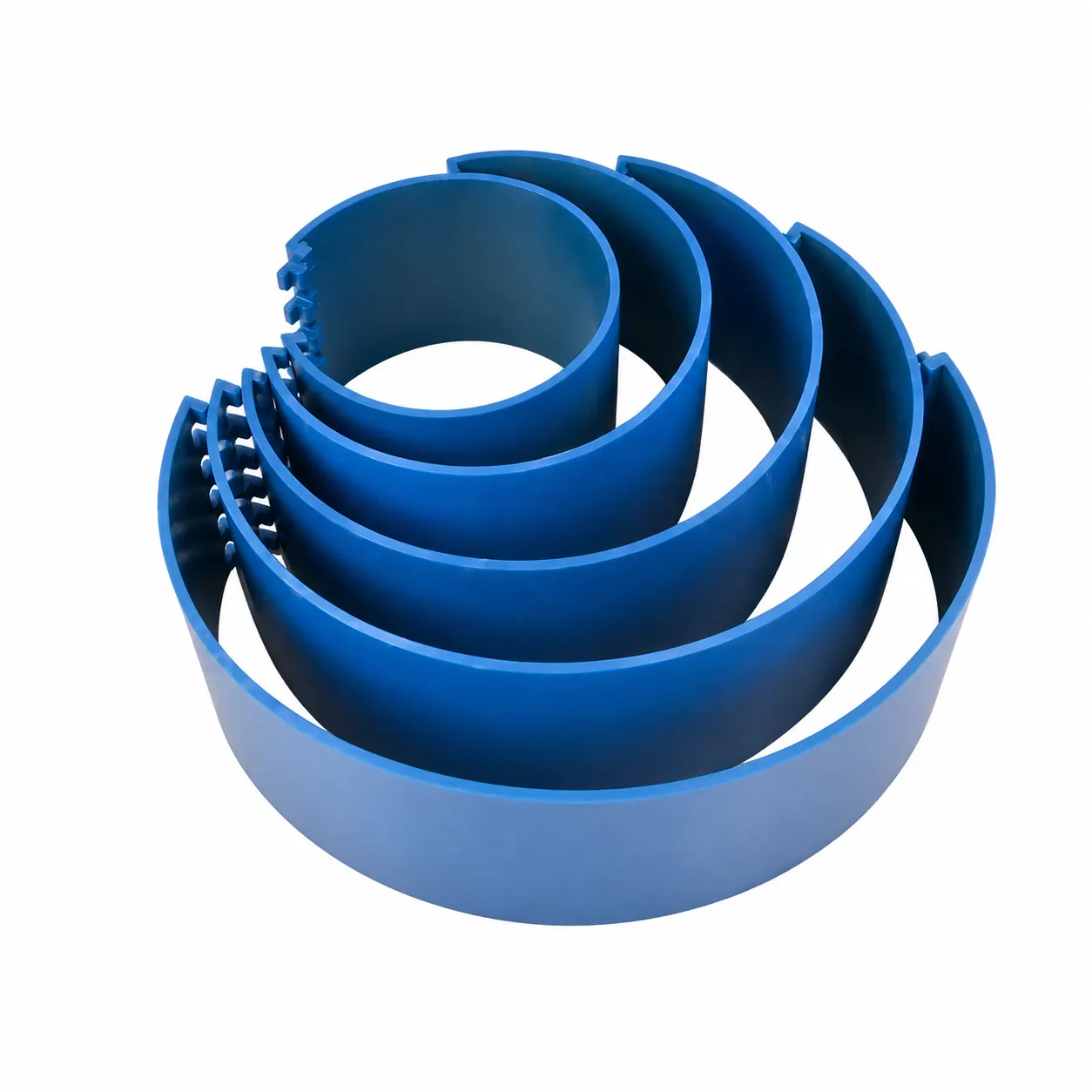

Polyurethane Anvil Covers, Made to Fit
Steel-backed and finger-lock covers for corrugated rotary die cutting, manufactured after confirming the machine model, cover dimensions and locking structure.
For a faster review, send the machine model, known dimensions or current-cover photos. See the quote checklist.
Custom SizeBuilt around your machine
Custom HardnessMatched to the application
Sample SupportDrawing or physical sample
Machine-specific fitDimensions and locking structure reviewed for each inquiry
Direct factory workflowCasting, machining and dimensional inspection coordinated in-house
Design patentChinese design patent ZL 2017 3 0129516.0
Repeat-order referenceConfirmed production details retained for future replacement orders
PRODUCT OVERVIEW
A Stable Cutting Surface for Consistent Production

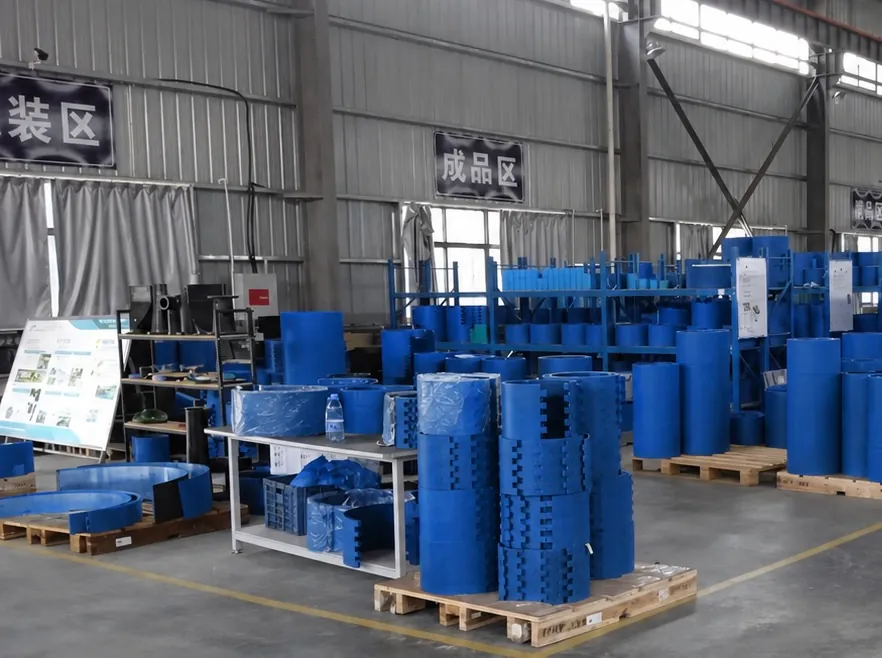

JUNSHIDA manufactures polyurethane anvil covers, also called rotary die cutting blankets, for corrugated converting equipment. Casting, mold development and precision finishing are coordinated in our own workshop to support repeatable fit and replacement orders.
- Application-focused polyurethaneProduced for the repeated cutting, impact and wear conditions of corrugated converting equipment.
- Machine-specific dimensionsWidth, thickness, hardness and connection details can be confirmed from a model, drawing or sample.
- Two locking approachesSteel-backed and finger-lock structures support different installation routines and production needs.
- Direct factory workflowMaterial processing, molding and precision finishing are handled within one production process.
Product Specifications
ProductPolyurethane anvil cover / rotary die cutting blanket
MaterialCast polyurethane (PU)
ApplicationCutting section of corrugated box rotary die cutters
StructuresSteel-backed or finger-lock, customized to the machine
HardnessSelected for the machine, board and cutting pressure
DimensionsMade to machine model, drawing or physical sample
ColorPrimarily blue; other colors available on request
TDI Blue SeriesReference life of approximately 3 million cutting cycles
MDI Gray SeriesReference life of approximately 7 million cutting cycles
Custom OptionsWidth, thickness, hardness, slots, lock and machine-fit dimensions
Production SupportPU casting, mold development, precision machining and dimensional inspection
Exact dimensions, tolerances and hardness are confirmed for each inquiry before production.
DESIGN PATENT

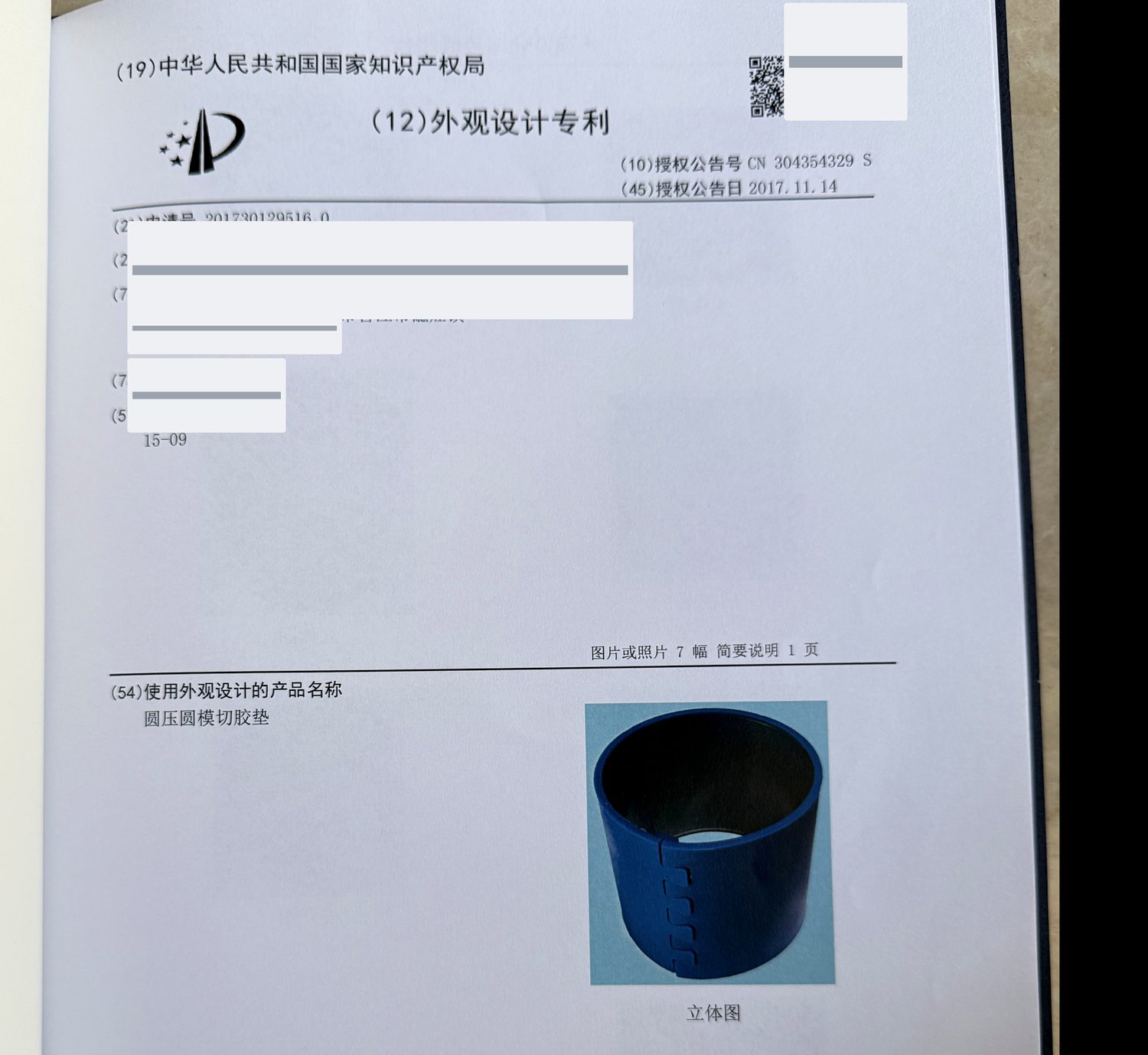

Design Patent for Rotary Die Cutting Anvil Covers

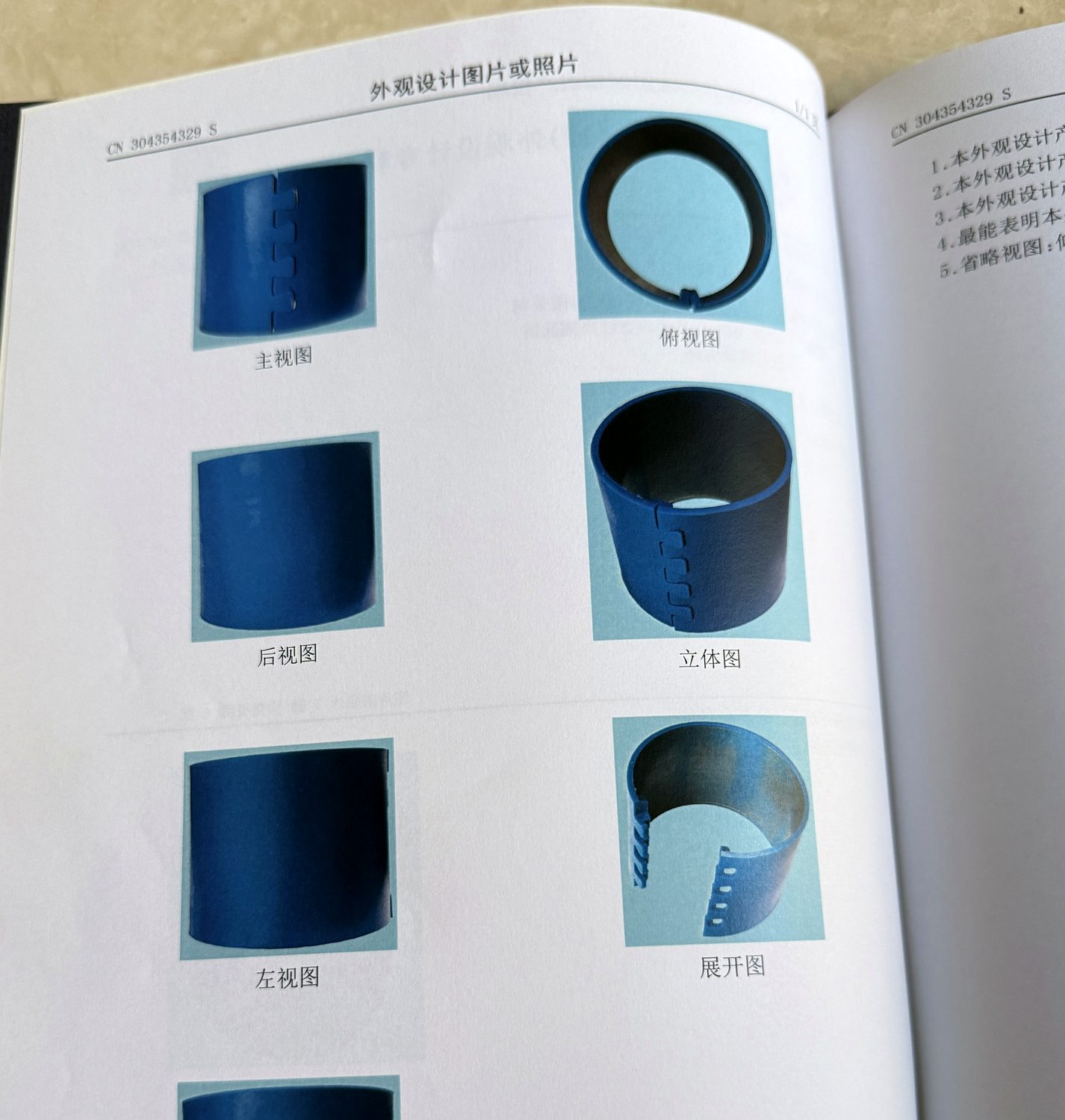

This round-pressure rotary die cutting anvil cover design is supported by a Chinese design patent. The patent record reflects the product appearance used around installation, replacement and machine-fit requirements for corrugated converting equipment.
Patent TypeDesign Patent
Product NameRound-Pressure Rotary Die Cutting Anvil Cover
Patent No.ZL 2017 3 0129516.0
Authorized Date2017-11-14
Public display images are redacted to protect personal information and detailed address data while keeping the product and patent reference visible.
TDI & MDI SERIES
Choose the Material Route Around Your Workload
Both series are customized to the machine. The difference is the polyurethane route and its typical service-life reference under suitable operating conditions.
TDI / BLUE
3million cycles*
TDI Blue
An established material route for routine rotary die-cutting production and regular replacement planning.
Ask for a technical review02
MDI Gray
Extended service reference≈ 7 millioncutting cycles*
Higher-cycle production requirements
Custom size, hardness and locking structure
Reviewed from model, drawing, sample or photos
Not sure which route fits? Send the machine model and a current-cover photo. We will review the application before quotation.
Ask for a Review
*Service life is a typical reference rather than a fixed guarantee. Actual results depend on machine settings, die condition, cutting pressure, board material, rotation practices and maintenance.

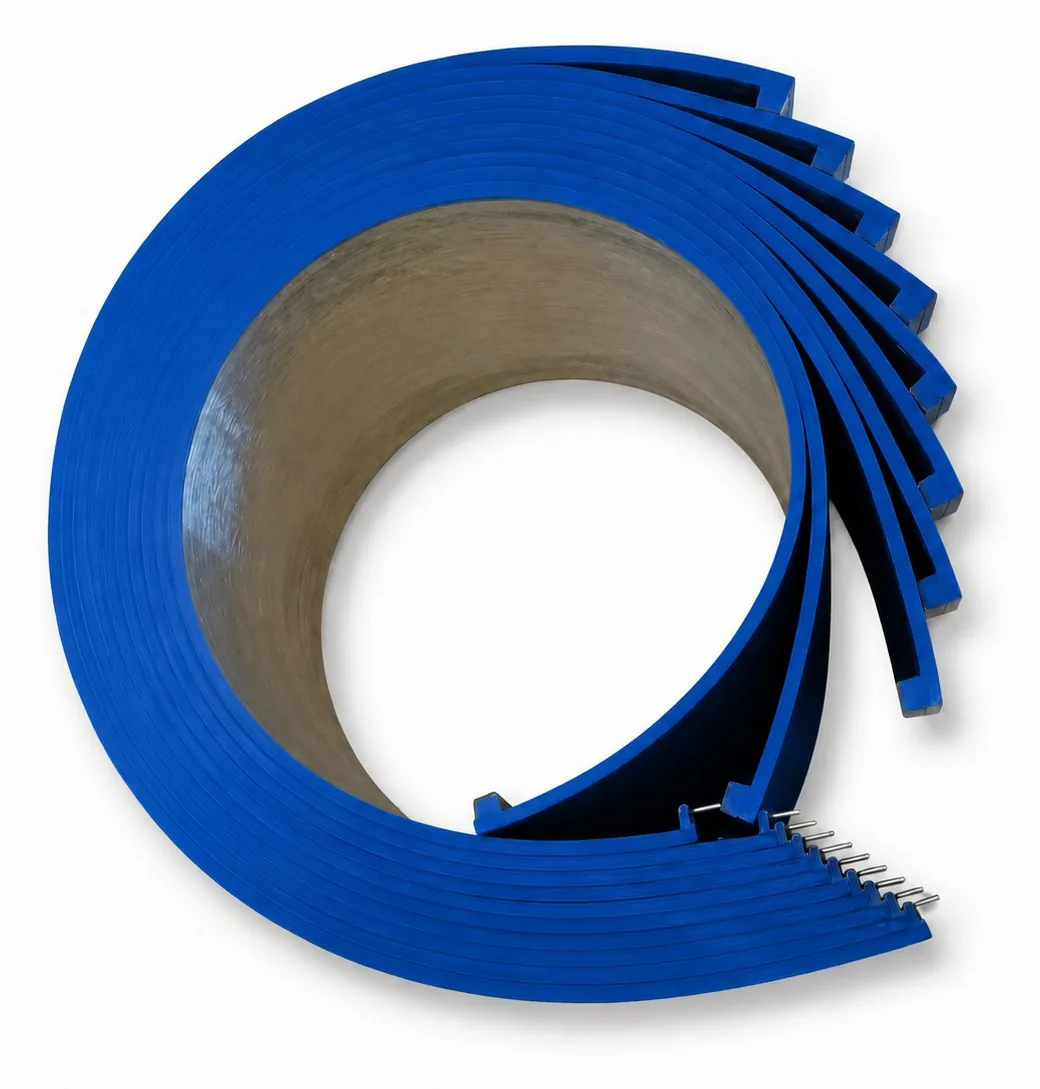

TDI BLUE SERIES · PRODUCT DETAILS

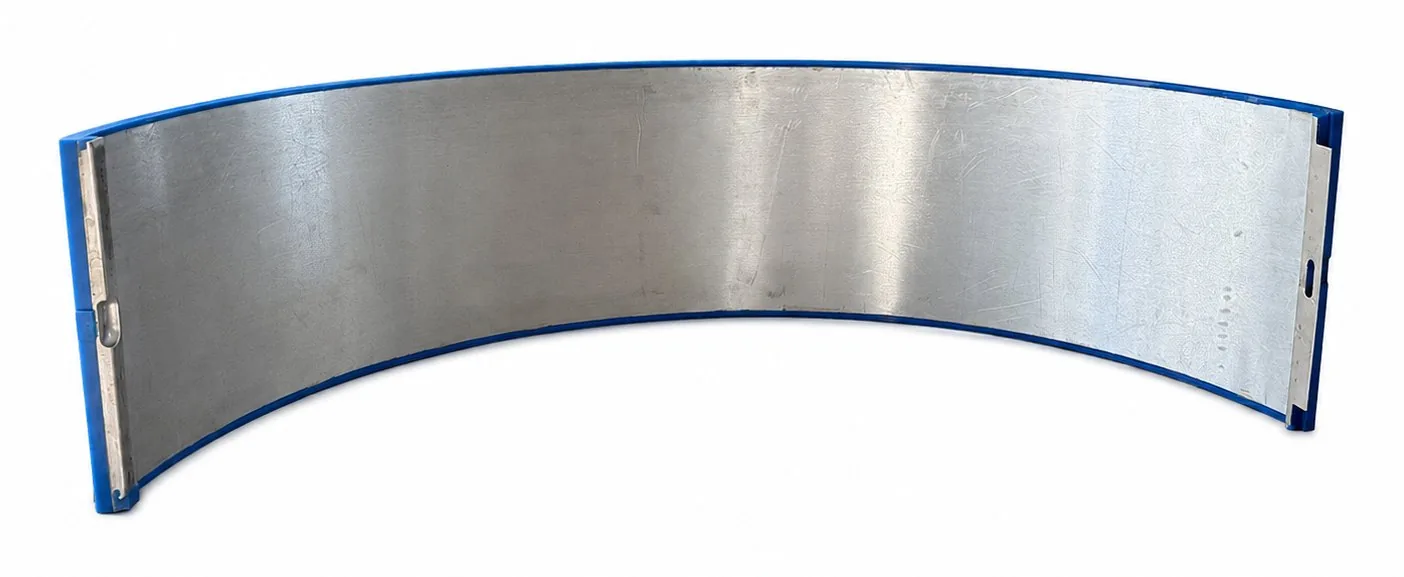

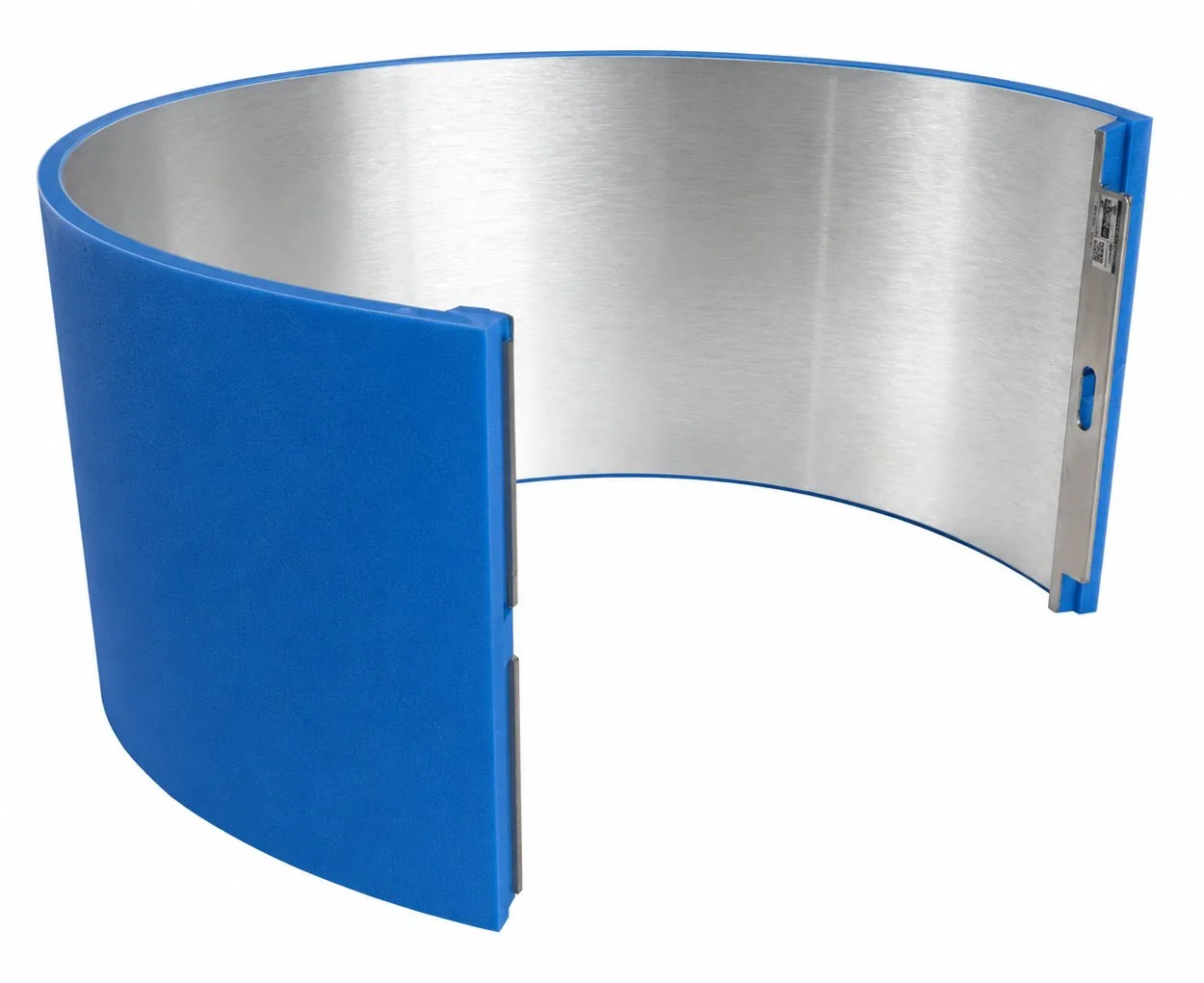

Blue TDI Covers, Shown from Every Working Side

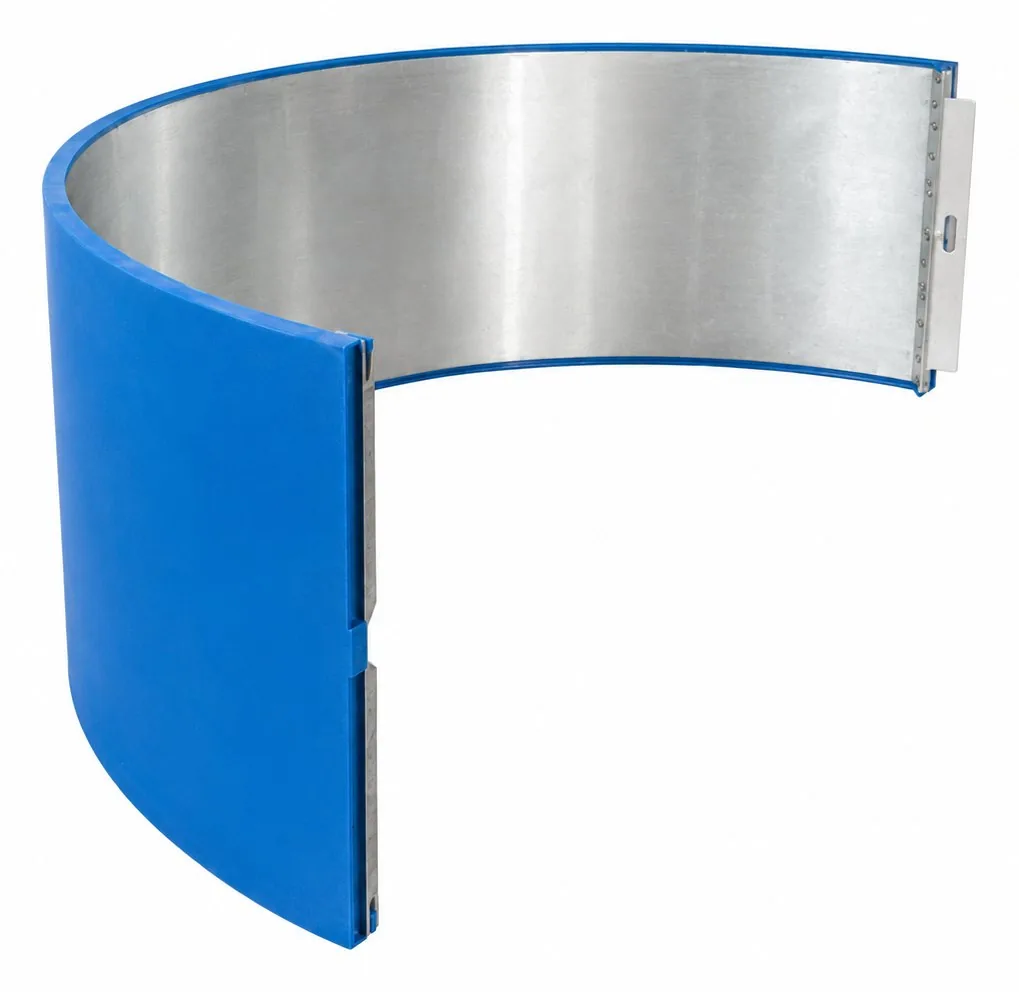

These studio views show the blue polyurethane cutting surface, steel backing and connection details. The final structure and dimensions are matched to the machine model, drawing or physical sample.
INSTALLATION GUIDE

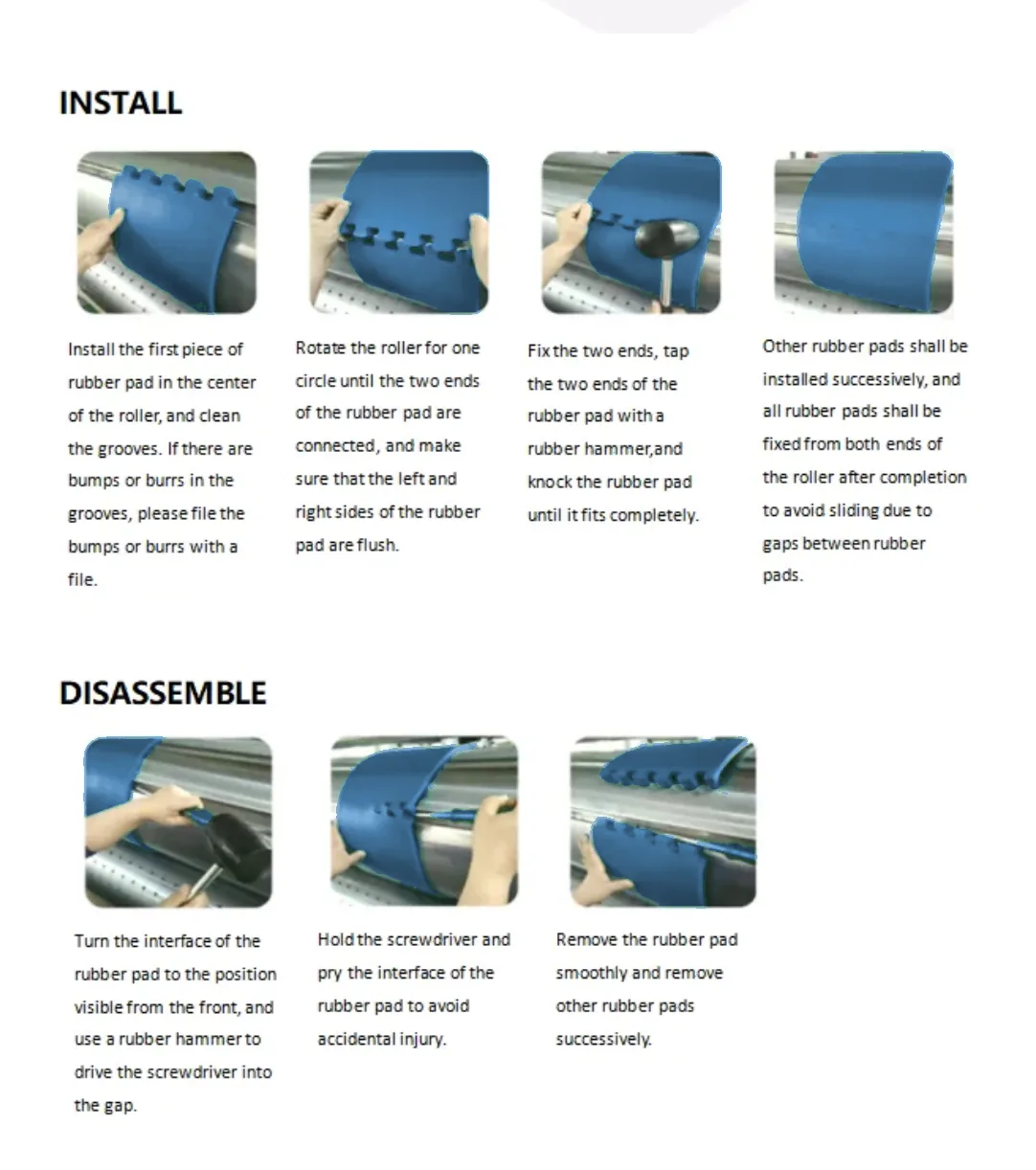

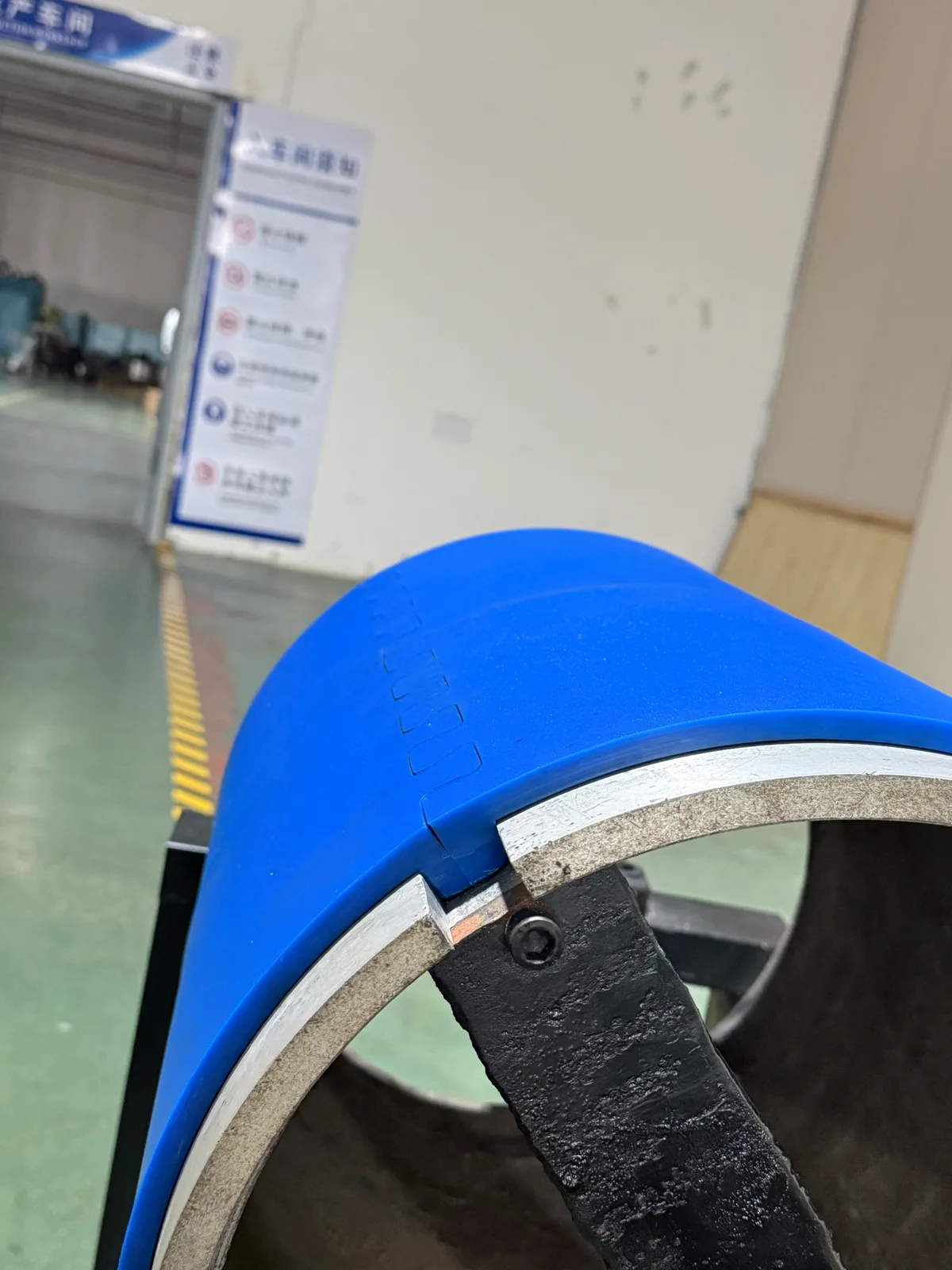

Finger-Lock Anvil Cover Installation and Removal Reference
This guide shows the basic install and disassemble sequence for finger-lock polyurethane anvil covers. The final method should follow the machine condition, roller structure and site maintenance practice.
01Clean the grooves before installation
02Rotate and align both cover ends evenly
03Use a rubber hammer to seat the locking area
Click the image to open a larger installation guide for maintenance teams.
LOCKING OPTIONS
Select a Structure Around Your Machine and Replacement Routine
Send the current cover structure or machine information. We will review the fitting method before confirming production details.
Steel-Backed Covers
A metal-backed structure developed for dimensional stability and demanding, continuous die-cutting use.
Finger-Lock Covers
An interlocking structure designed for practical installation, removal and routine replacement.
Made to Drawing or Sample
When a standard reference is unavailable, we can review the machine details, drawing or existing part.
APPLICATIONS
Rotary Die Cutting Applications for Corrugated Packaging
The cover provides a stable cutting surface for the die cylinder, supporting consistent cuts, even die cutting and smooth continuous production.
Rotary Die Cutters
For the cutting section of corrugated box rotary die-cutting machines.
Box Production Lines
Replacement wear surfaces for corrugated packaging production.
Printed Corrugated Board
Supports die cutting of flexo-printed boxes and corrugated sheets.
Replacement Covers
Made to replace worn or aging anvil covers from machine data or samples.
Continuous Production
Suitable for demanding, high-frequency rotary die-cutting conditions.
Quick-Change Systems
Finger-lock structures support practical installation and routine replacement.
HOW TO MEASURE BEFORE REQUESTING A QUOTE
Eight Details That Help Confirm the Correct Anvil Cover
Clear measurements and photos reduce uncertainty and help us review the correct dimensions, hardness and locking structure.
Machine Brand and Model
Share the machine nameplate photo whenever available.
Die-Cutting Cylinder Diameter
Measure the cylinder diameter at the anvil-cover installation position.
Cover Width
Measure the full width of the current polyurethane cover.
Cover Thickness
Measure the PU layer or the complete cover thickness and identify which value is supplied.
Slot Width and Depth
For steel-backed or locking systems, measure the slot width and depth.
Locking Structure Photos
Photograph the joint, end face and back structure clearly.
Hardness Requirement
Provide the original hardness if known; otherwise share the machine and operating conditions.
Drawing or Physical Sample
If dimensions are uncertain, send a drawing or arrange a sample for confirmation.
QUOTE CHECKLIST
Information That Helps Us Confirm the Correct Cover
- Machine brand and model
- Current part number, if available
- Cylinder diameter
- Cover width and thickness
- Slot width and depth
- Required hardness
- Required quantity
- Drawing or product photos
FREQUENTLY ASKED QUESTIONS
Polyurethane Anvil Cover FAQ
Can you make an anvil cover for my machine model?
Yes. Send the machine model, current cover photos, drawing or physical sample. We will review the actual structure and confirm the dimensions.
What is the difference between steel-backed and finger-lock covers?
Steel-backed covers are suited to demanding continuous die cutting and provide a stable structure. Finger-lock covers are easier to install and replace. The correct choice depends on the machine design.
Can the hardness be customized?
Yes. Hardness can be selected according to machine pressure, board material and die-cutting requirements.
What information is required for a quotation?
Provide the machine model, cylinder diameter, cover width and thickness, slot width and depth, hardness, quantity and clear photos of the current cover.
Is the service life fixed?
No. Service life depends on cutting pressure, die condition, board material, machine adjustment, rotation practices and maintenance. The figures on this page are reference values only.
Can you produce from a sample if I do not have a drawing?
Yes. You can send a physical sample for measurement, structure review and mold development.
Is repeat ordering straightforward?
Yes. After the dimensions and structure are confirmed for the first order, we can retain the production reference to arrange repeat orders more efficiently.
